3 axis CNC Router

Multi functions 1530 wood cnc router price for 3d wood doors

2018-04-26 17:32:41   views:

If you have any questions, pls feel free to contact me: E-mail: export11@acctekcnccom Whatsapp: +8617863818094 Skype: acctek11
Multi functions 1530 wood cnc router price for 3d wood doors cnc router

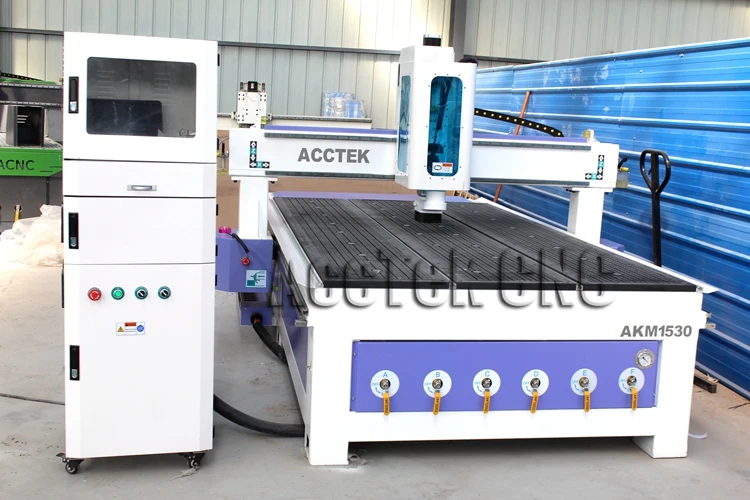

The whole 1530 Wood cnc router pictures:

cnc router (3).jpgcnc router0.jpgcnc router (9).jpg

Mainly Configurations of Wood cnc router
#Working area: 1500*3000*200mm
#Spindle: Chinese Changsheng 3.0KW air cooling spindle (4.5kw air cooling spindle option)
#Control system: Mach3 controller with USB port (DSP controller option)
#Drive system: Leadshine drivers M860 and 450B stepper motors (easy servo motor option)
#Transmission: XY by gear, Z by Taiwan TBI ball screw
#Rail guide: Taiwan Hiwin linear square 20mm rail guide
#Table: T-slot table (Vacuum table option)
#Inverter: Shanghai Fuling inverter
#Software: Type3 ,Artcam
#Manual oiling system
#Computer cabinet
#Tool sensor
#Standard tool box


Wood cnc router main features

Thicker square tube bed makes the operation more stable and accuracy.

2 Our machines adopt the vacuum or T-slot dual-use table, you can use the clips to fix the small-scale materials, which can save the vacuum pump electricity, and you can adopt the vacuum adsorption to fix large-scale material.so the processing is convenient, simple and efficient.

High quality Taiwan imported Linear guide rails has much longer life 10 times of life-time than round guide; It is stable and hard to distort.

Mach3 control system is a very popular control system with high quality. All of our big machines use the US control system.

Double motor for Y axis make the cnc machine work with more strength ;

4th axis rotary can be optional for manufacture cylinder samples

Machinery Details

cnc router (1).jpg

cnc router (8).jpg

Technic Parameters
Model AKM1530 Wood cnc router
Working area 1500x3000x200mm
Spindle type Chinese water cooled spindle / air cooled spindle
Spindle power 3.0kw / 3.5 kw / 4.5kw / 5.5kw
Spindle rotating speed 0-24000rpm/0-18000rpm
Power supply AC220V/380V±10, 50 HZ
Worktable T-slot or Vacuum working table
Locating precision <0.01mm
Min shaping character Character:2x2mm,letter:1x1mm
Operating temperature 5°C-40°C
Working humidity 30%-75%(without condensed water)
Working precision ±0.03mm
System resolution ±0.001mm
Control configuration Mach3 control system with USB/DSP
Data transfer interface PC
System environment Windows XP/ Windows 7
Spindle cooling mode Water cooling / Air cooling
Graphic format supported G code: *.u00, * mmg, * plt, *.nc
Compatible software ArtCAM, UCANCAM ,Type3 and other CAD or CAM softwares
Cutting thickness 0-40mm also (depends on different material)
Z tool censor Yes
Whole machine dimension 3665*2280*1830mm
Net weight 1350kg
Gross weight 1650kg
Packing Customized Plywood case (veneer wood case for export)
Optional parts 1. Servo motors (Taiwan Delta or Japan Yaskawa brand)
2. 4th Rotary device for cylinder materials
3. 3.0kw double bags dust collector



Sample

Wood cnc router Samples

router cnc.jpg

wood cnc router.jpg

cnc router3

Payment & Delivery

Wood cnc router Payment

1. T/T
*We accept T/T , you can pay 30% in advance, 70% before delivery.
*The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.
*After you agree, please finish the balance.Finally.we arrange the delivery
2. Trade Assurance



Wood cnc router Delivery
*Outside package: Standard marine export plywood case .
*Inner package: Stretch film and plastic film for humidity .
*We can package according to your requests.
wood cnc router (15).jpg
Our Services



cnc router.jpg



Guarantee:

12 months for the whole Wood cnc router. Within 12 months under normal use and maintenance, if something is wrong with the Wood cnc router, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.



Technical support:

1. Technical support by phone, email or MSN/Skype around the clock

2. Friendly English version manual and operation video CD disk

3. Engineer available to service machinery overseas

2 (2).jpg

After sales services:

1.Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received Wood cnc router.

2.Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc.

3.Our technicians could speak English, if you need any technical support in the future, they could help you online.

cnc router.jpg
