3 axis CNC Router

High Speed Wood MDF Furniture Cabinet Door Making CNC Router 2030

2019-07-11 15:43:40   views:

High Speed Wood MDF Furniture Cabinet Door Making CNC Router 2030Product DescriptionFeatures of mdf cutting machine

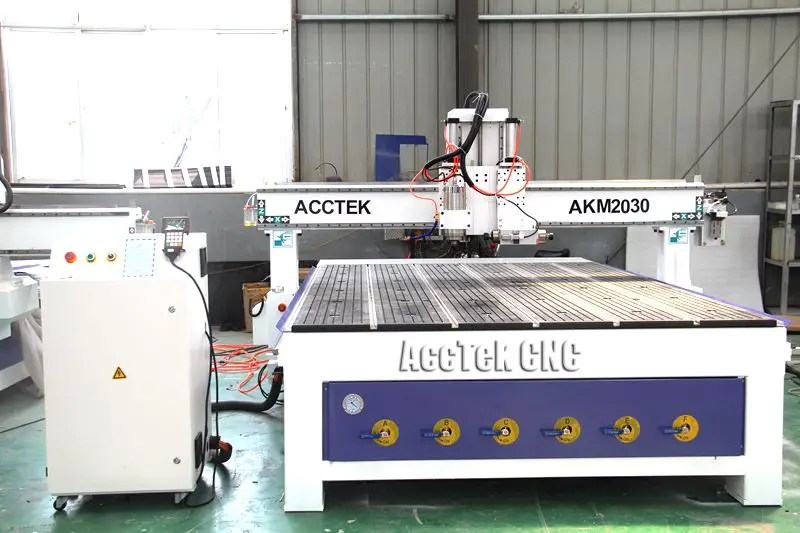

 High Speed Wood MDF Furniture Cabinet Door Making CNC Router  2030



China woodworking panel furniture 2030   ATC CNC router machine for mdf milling

Product Description



Features of mdf cutting machine:

1. Working area: 2000mm*3000mm *200mm

2. Steel gantry , strong structure

3. DSP controller

4.  vacuum table &T-slot & PVC working table

5. 3KW Changsheng water cooling spindle*3.5kw air cooling spindle for horizontal

6. 3.7kw Fuling inverter

7Stepper motors and drivers

8. Z axis with Taiwan TBI Ball screw transmission

9. X,Y axis with high precision helical rack gear transmission

10. manual  Oil lubrication system

11. Artcam /Type 3 software

12. 380V, 3phase, 50/60HZ voltage (220v for optional)



application &samples



1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door,

screen,MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs,

headboards and so on.



2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

crystal word making,  blaster molding, and other advertising materials derivatives making.



3. die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as

artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.



4. relief sculpture and 3D engraving



5, cylinders engraving such as wood table legs etc.

 China woodworking panel furniture 2030   ATC CNC router machine for mdf milling

China woodworking panel furniture 2030   ATC CNC router machine for mdf milling

Technical parameters
NO. Description  Parameter
1 X,Y,Z Working Area 2000*3000*220mm
2 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
3 X,Y,Z Repositioning Accuracy ±0.03mm
4 Table Surface Vacuum &T-slot Table
5 Frame Welded Structure
6 X, Y Structure Taiwan HIWIN brand Helical Rack Drive, HIWIN/PMI Rail Linear Bearings
7 Z Structure HIWIN/PMI Rail Linear Bearings and Ball Screw
8 Max. Power Consumption (Without Spindle)  2.5kw~3Kw
9 Max. Rapid Travel Rate 33000mm/min
10 Max. Working Speed 25000mm/min
11 Spindle Power 3.0kw water cooling spindle
12 Spindle Speed 0-24000RPM
13 Drive Motors Stepper System (Servo motor for option)
14 Working Voltage AC380V/50/60Hz,3PH (Option: 220V)
15 Command Language G Code
16 Operating System Mach 3  control system
17 Computer Interface USB
18 Flash Memory 128M(U Disk)
19 Collet ER25
20 X,Y Resolution <0.01mm
21 Software Compatibility Type3/UcancameV9 Software, (Option: Artcam Software)
22 Running Environment  Temperature 0 - 45 Centigrade
23 Relative Humidity 30% - 75%


Details photos

 China woodworking panel furniture 2030   ATC CNC router machine for mdf millingChina woodworking panel furniture 2030   ATC CNC router machine for mdf millingChina woodworking panel furniture 2030   ATC CNC router machine for mdf millingChina woodworking panel furniture 2030   ATC CNC router machine for mdf millingChina woodworking panel furniture 2030   ATC CNC router machine for mdf milling
