CNC 80W 100w laser cutting machine 1390 laser cutter machinery for wood

2020-04-29 09:55:38   views:

CNC 80W 100w laser cutting machine 6090 1390 laser cutter machinery for wood acrylic plexiglass cutting
AKJ1390 machine

Standard configurations for laser engraving machine AKJ1390:

# Working size: 1300*900mm

# Ruida 6442S control system with LCD panel

# Top quality Beijing Reci glass laser tube

# Stepper motor and Leadshine drivers

# Taiwan high accuracy Square guide rails

# Shanghai Fulong belt and copper gear transmission

# Singapore 1*focus lens and 3*reflect mirrors

# Knife or Honeycomb table

# Laser head with red point position

# Water cooling system with water chiller

# Water protection switch

# Exhaust fan 550w to output smoke

# Standard tools box for installation and maintence

# Air pump

# Manual book and 8GB flash disk for manual instruction

# RDCAM software with the machine



Application Materials of laser engraving machine AKJ1390:


Marble, granite, tombstone, wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber, ceramic, glass and other non-metal materials,etc.

Applicable Industries of
laser engraving machine AKJ1390:


sticker cutting and engraving, marble engraving industry, advertisement, gift packing, shoes, garments, toys,model, decoration, atrs and crafts, paper industry,etc.

Samples

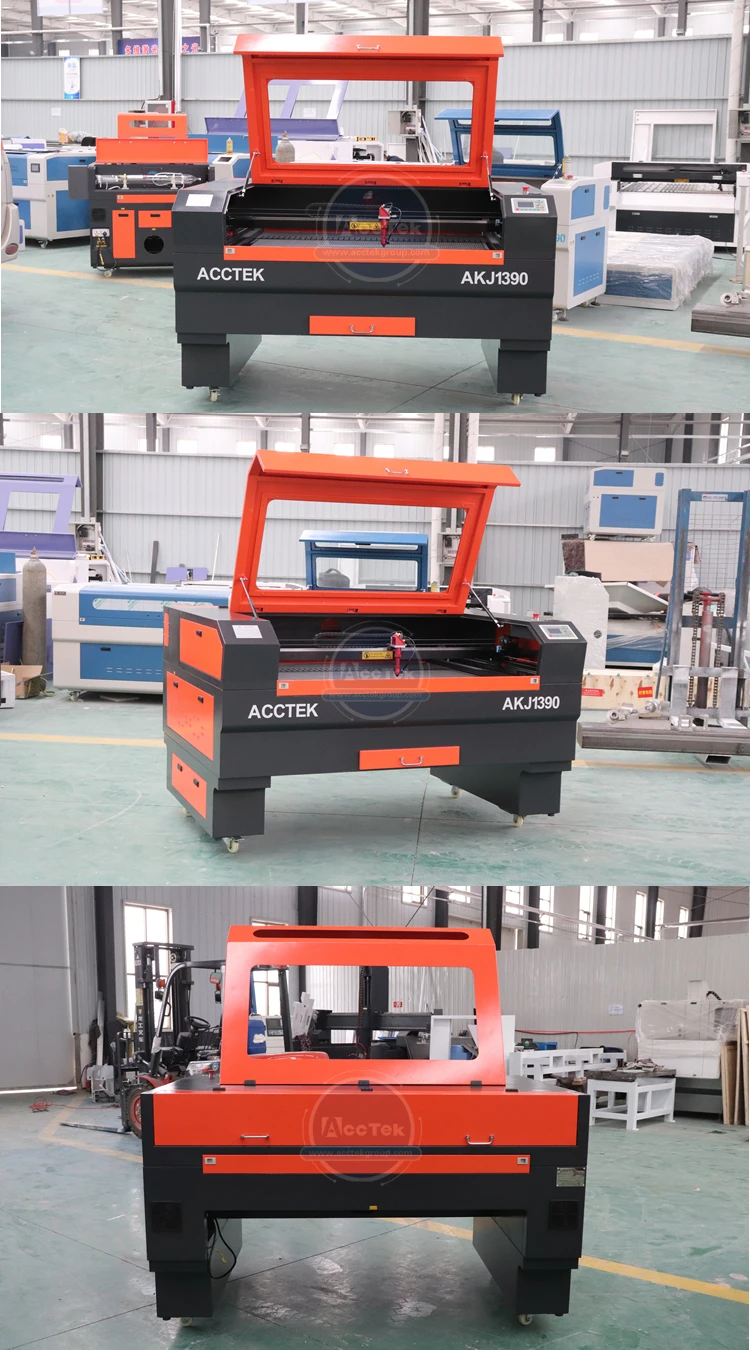

 Detailed Images of laser engraving machine AKJ1390:

AKJ1390

 Technical Parameters of 1390 co2 laser cutting machine:



Model AKJ1390 cnc laser machine
Laser model CO2
Working area 1300*900mm
Working table Honeycomb table/ Blade table
Laser power 60w/80w/100w/130w/150w
Power Supply 220V/110V, 50/60Hz
Min line width ≤0.15mm
Positon accuracy 0.01mm
Repetition accuracy 0.02mm
Cutting speed 200 mm/s
Guide rail Hiwin from Taiwan
Transmission method Shanghai Fulong belt
Drive system Stepper motor and driving system
Cooling system Water-cooling
Control system Ruida control system
Control software Coreldraw, Photoshop, AutoCAD, Tajima
Graphic format support PLT, DXF, BMP, JPG ,AI ,ect
Working environment 0-45℃,
Operating Humidity 5-95%
Net weight 350kg
Gross weight 400kg



About the Payment:

*We accept T/T , you can pay 30% in advance, 70% before delivery.
*The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.
*After you agree, please finish the balance.Finally.we arrange the delivery.

About the Delivery:

*Outside package: Standard marine export plywood case
*Inner package: Stretch film and plastic film for humidity

*We can package according to your requests.

1AKM-1325C3_06

COMPANY01
公司介绍_04

After-sale Services:

1)1years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2)Lifetime maintenance free of charge.
3)Free training course at our plant.
4)We will provide the consumable parts at an agency price when you need replacement.
5)24 hours on line service each day, free technical support.
6)Machine has been adjusted before delivery.
7)Our staff can be sent to your company to install or adjust if necessary.


公司介绍_03
公司介绍_05
 FAQ

(1).Are you a factory or trading company?

We are the manufacturer and we have10 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. sowelcome to visit to our factory.

(2). How should I pay for my order ? What is the procession of this purchase?

You can do 30% prepayment at first, then we will start to make production.

when the machine is ready , we will take pictures to you, and then you can do the ballance. after we got your payment. We will send the machine to you.

(3). How long is the delivery time?

For standard machines, it would be 7-10 days;

For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
